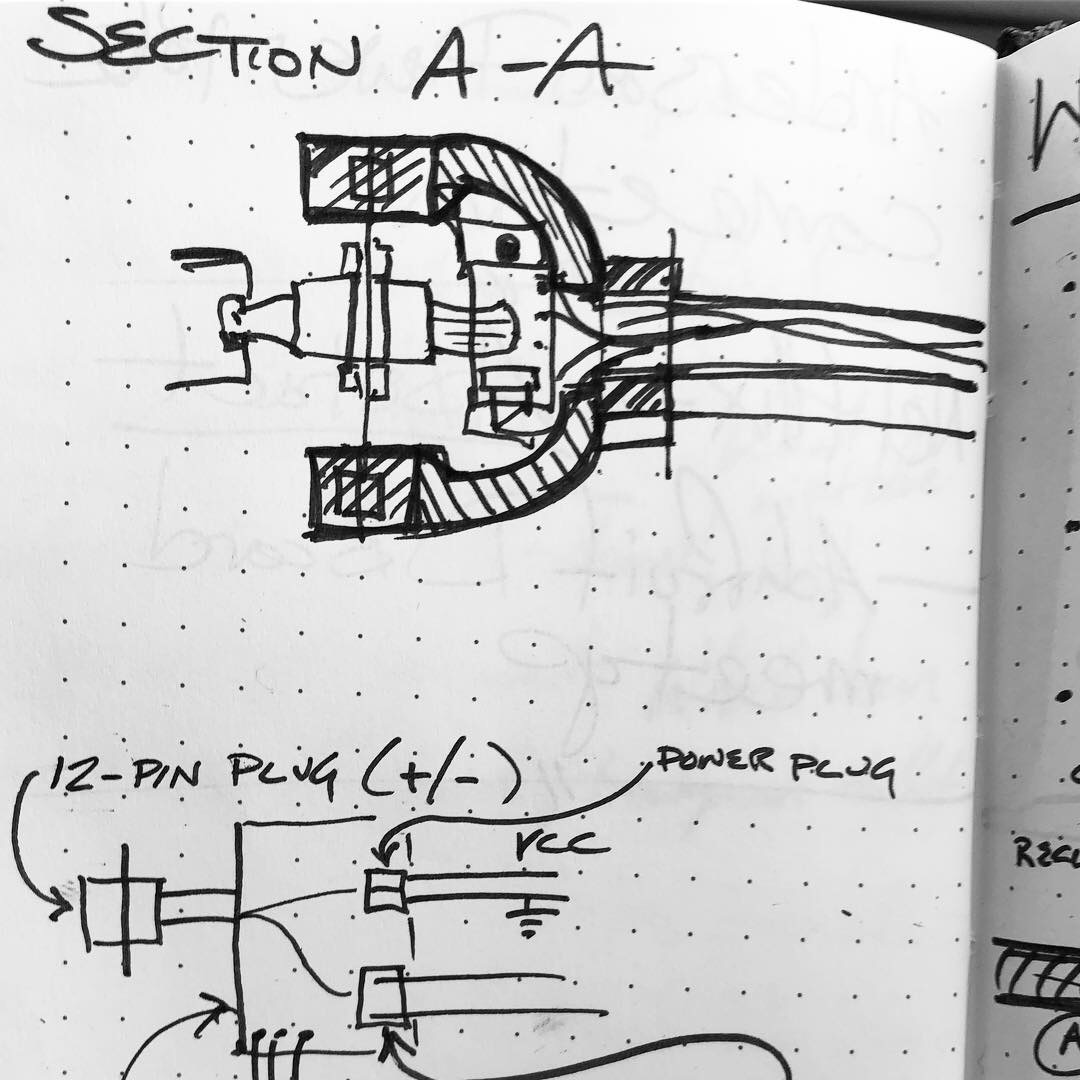

Sketchbook Pages: Witch Lights redesign

After meeting with the Adafruit Discord at WMFNY this year, I wrote down some ideas for improvements to the design.

At this point I'm comfortable with the functionality enough to begin thinking of aesthetics and fabrication beyond 3D printing. Also plan to incorporate advice from the #projecthelp channel on how to make the power harness more reliable. Some notes:

  • Use step up and step down modules to push 12V down the length of the harness

  • Consider using plugs, rather than screw terminals, to connect power, LED, and data lines to circuit boards

  • Professionally fabricated circuit boards

  • Back to original vision: 5-meter segments of the harness link together as you install the lights in a location; 12-pin plugs connecting 2 halves of a machined or 3D-printed housing

  • Use LoRa to pass FaerieSprites from one set of Witch Lights to another along long paths and achieve original vision

  • Plug in additional modules, such as the (short) UV NeoPixel strips for Tree Spirits or other non-FaerieSprite animation

  • Moar sensors

  • Teensy Weensy could possibly be next gen brain replacement, having one 5V step-up pin for NeoPixel control

  • Solder a 3.3V power line to the low voltage VIN point of my existing PIR sensors to make them not go bugfuck at 3.3v

Sketchbook page: Witch Lights Harness

Trace paper is where I always start

At World Maker Faire last Sunday, an absolute highlight was being able to see Laura Kampf and Sophy Wong talk about design and making.

I sat with Alex Glow, and was totally thrilled with the presentation. I was especially happy when they showed their notebooks, because I, too, had documenting and sharing my sketchbook drilled into me in design school.

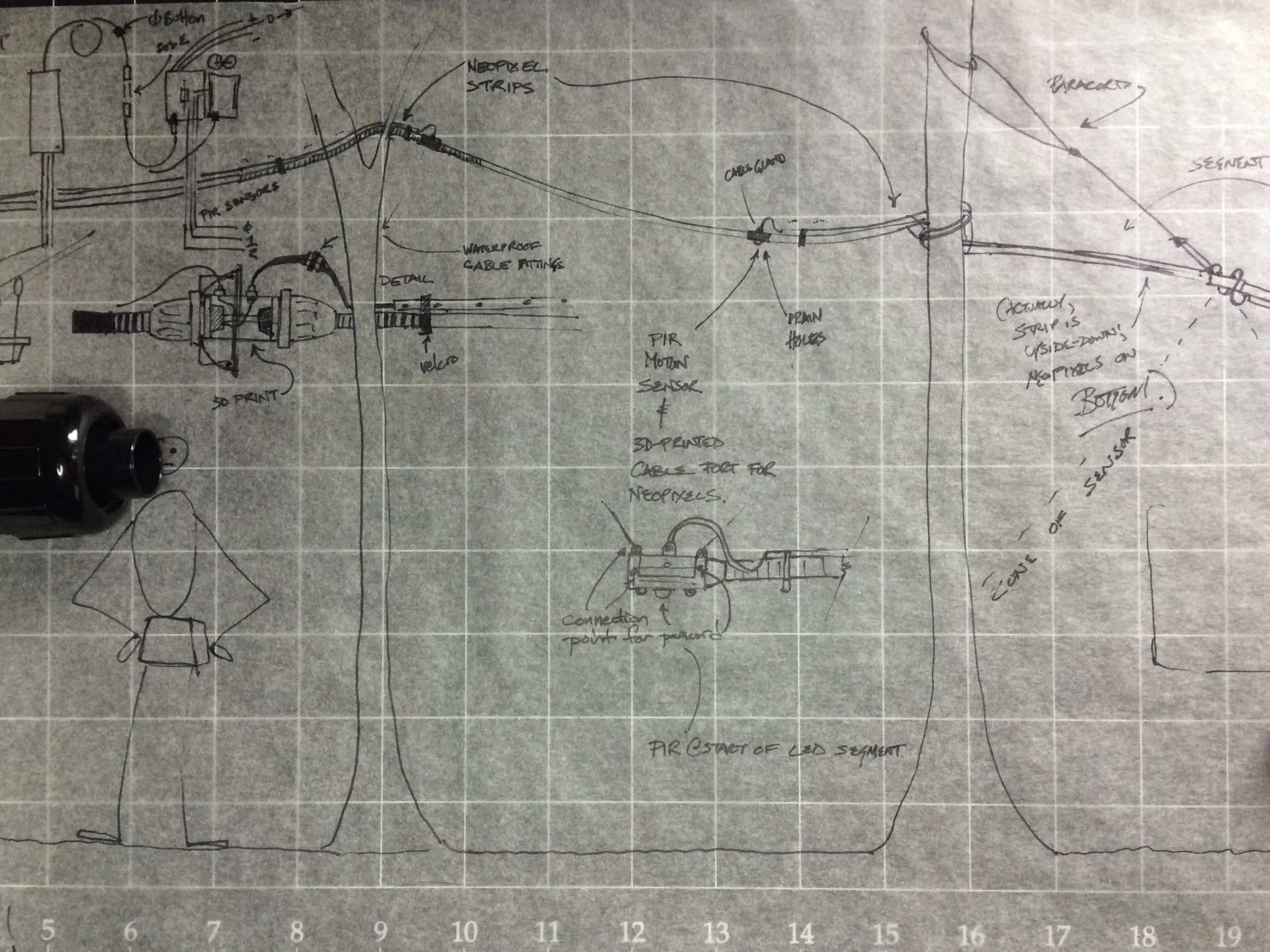

So that's why I'm so happy that I was able to find this photo of the most critical sketch for the Witch Lights, the paper copy of which is in one of about 6 boxes in my closet. This is where I started at one end of a roll of trace paper, and just outlined all the chain of components and elements I'd identified so far. That’s where I realized I could create a unified harness and LED structure with 3D printing.

When I started the sketch, I was considering using polypropylene chinese food containers for the junction boxes. They're recyclable, tough, water-tight, and inexpensive. But my experiment with a hole-saw and the conduit fittings had proved frustrating and laborious.

The conduit I had was 3 times the diameter of what I'd thought I was ordering at 2am the other week. But I liked the way I could make it form shapes in mid-air, and so here I was trying to lay out how using it would change the design.

Note on the left there’s an actual fitting for the harness. I had just found a solidworks model of these online, so I knew I could use my Solidworks assembly context skills to very quickly design hardware to fit it.

At the time I was thinking of printing lids for Chinese take-out containers.

In the upper left, you can see I started a marker sketch of a take-out housing, and then sketched a simpler, streamlined housing that allows the diameter of the conduit to say roughly the same all through the chain.

In the lower right: I figured out I could put sensors in the housings too, reducing another complexity

And you can also see the cable glands and 4-pin waterproof cables for the NeoPixels, which I had already figured out at this point.

It's so cool to find a moment where you pulled it all together and made a design decision that worked out. I'm excited about this!

So yeah... this is basically how I draw. It's not the best. But it gets the idea across I hope.

Next up: building an enchanted notebook so I have shots like this of all my in process work. Because I’ve lost another goddamn notebook.

Witch Lights at World Maker Faire 2018
I met @RealSexyCyborg and we traded stickers and it was awesome

I met @RealSexyCyborg and we traded stickers and it was awesome

As a complete last-minute decision, I'm at World Maker Faire. In true guerilla installation old punk artist fashion, I completely spaced on registering as a Maker. But that's ok, because I'm bringing Witch Lights 2 to the Adafruit Discord Meetup tomorrow, to discuss how I fried three PowerBoost 1000Cs.

And I'm going to tune the animation speed as best I can with my laptop and the backpack toolkit.

I asked Becky Stern if I'd get kicked out for unauthorized art installation, and her reply was, essentially, "Nobody is going to know it's not "supposed" to be there, and anyone who does know will think it's cool, so do it."

I don't need to be invited to the party twice.

If you are at World Maker Faire, or can come down, I'll be near/behind the little racecar track, using the fence there to suspend the Witch Lights. The park has asked us not to suspend things between trees due to understandable concerns that the trees might be harmed.

Come say hi, and if I have a sticker left, you can claim it!
